STD-WS Guide

Overview 1.0

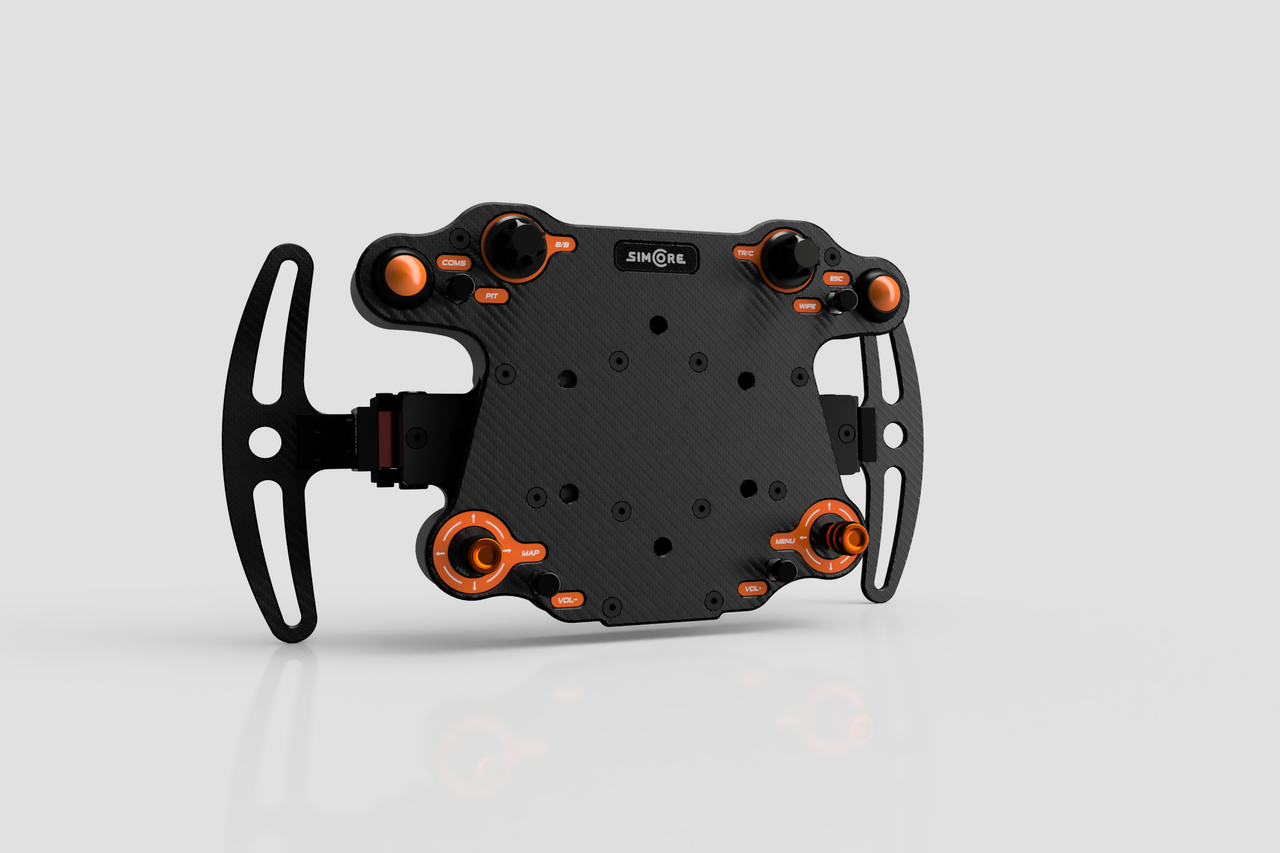

STD-WS is one of our Simucube compatible wireless wheel button boxes
Simcore Name

Getting Started: 2.0

Requirements: 2.1

  • This wireless wheel requires a Simucube 2 Wheel Base.
  • This device must be charged approximately every 8-12 months using the included USB-C cable. The device should take around 2 hours to reach full charge.
  • This device requires the installation of Simucube True Drive. This software is available for download here: Simucube 2 True Drive releases.

Connecting Wheel: 2.2

After installing the Simucube True Drive software either follow this video from Simucube or follow instructions below to connect the wheel to your computer for the first time.

  1. Ensure Simucube 2 direct drive base is powered on and set up
  2. Open True Drive 2 Software
  3. Select Wireless Wheel tab (second from top)
  4. Power on the wheel using the switch on the rear of device
  5. It should now appear in the list of available devices
  6. Within 10 Seconds of powering on the device double click on it to connect it

Simucube Button: 2.3

The Left Funky Switch acts as the Simucube Button and gives control over force feedback parameters directly from the wheel.

  • To enter the Simucube Button mode press and hold the Left Funky Switch for 1 second.
  • Then select the parameter you want to adjust by pressing the Left Funky Switch in one of the directions below.
    • Up: Overall Strength
    • Left: Damping
    • Right: Simucube Force Reconstruction Filter
  • To increase/ decrease the parameters value rotate the left funky switch.
  • Holding the Funky switch in the direction of a parameter for 2s will revert it to it's previous value.
  • To exit the Simucube Button mode press and hold the Left Funky Switch for 1 second.

Battery: 3.0

Charging: 3.1

To charge follow these steps:

  • Connect the included USB-C cable to the bottom of the wheel and the other end to a 5v USB power source
  • For a full charge from 0% to 100% expect it to take around 7 hours however with regular charging this time will be much shorter

Sleep/Wake: 3.2

To save power during inactivity the wheel will disconnect automatically. This is triggered when the wheel has not rotated more than 10 degrees or had any buttons pressed for 1 hour.

  • To wake the wheel from sleep mode pull both clutches in and it should automatically reconnect.
  • To manually disconnect the wheel without switching power off pull in both clutches for 5 seconds.

Storage: 3.3

If the wheel is going to be stored or not used for a long period of time it is recommended to charge it to approximately 50% then turn the device off using the switch on the rear of the device.
